LTK Pro-Fit Insulation Jackets

Insulation Jacket / Large Sleeve

LTK-large-sleeve

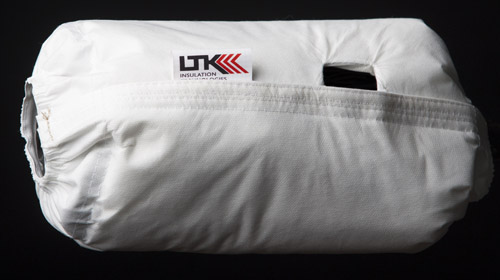

Insulation Jacket / Medium Sleeve

LTK-mid-sleeve

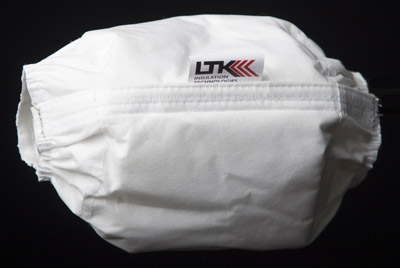

 Insulation Jacket / Small Sleeve

LTK-small-sleeve



LTK Insulation Jacket Product Description

LTK insulation jackets & covers are low cost, high value and quality made condensation control, proudly manufactured in the U.S.A. Condensation control with a one piece, removable, reusable insulation jacket, constructed with 1 ½”, ¾ # density fiberglass insulation sandwiched between spunbond PP/IIdpe medical grade perm rated fabric. Seams sewn double stitched with d-20 polyester thread. End seals maintained by ½” elastic cord gather sewn. Units are easy to install and remove with ¾” Velcro™ closures. Standard-white/custom sizes available.

All LTK Insulation Sleeve Products are proudly made in the U.S.A.ASTM E136 accepted for Commercial, Institutional, Industrial and Residential project in North America

Benefits of the LTK Insulation Jackets & Covers

  • No loose fibers
  • No tools necessary
  • Reusable
  • Easily replaceable part, if lost or damaged
  • Fits multiple valve assemblies by multiple manufacturer’s
  • Prevents condensation and potential water damage
  • Easy to Install & Remove with Velcro ™ closures
  • Ready to use out of the box -no fabrication cost

Uses for the LTK Insulation Jackets & Covers

  • Balance valve assemblies
  • Water meters
  • Flex connections
  • Coupled connections
  • In-line pipe apparatuses subject to condensation



LTK Pro Fit

Pro-Fit Request Quote
Pro-Fit Assistance







If you are a professional contractor or construction manager with building projects such as hospitals, schools, municipalities, businesses or large office buildings, you know water damage from condensation can be a serious problem. Not any longer. Now you can be prepared and fix those dripping pipes in short order for low cost. Be prepared for those condensation leaks especially when the seasons change.

Download the LTK Insulation Jacket Technical Data Sheet

Fitment for LTK Pro Fit Insulation Jackets & Covers, as Easy as 1, 2, 3…

1—Identify Type

  • 2 way (no escape simple cover)
  • 3 way (one small escape handle port)
  • 4 way (3 way control with escape)

2—Identify Length of opening between line apparatus to be covered/enclosed by LTK Insulation Jacket*

  • 6”
  • 8”
  • 10”
  • 12”
  • 14”
  • 16”
  • 20”
  • 24”
  • 30”

*Note total length of sleeve will be +4” (2” overlaps)

3—Identify Diameter

  • OD of metal in line apparatus
  • OD of insulation to over lap

Diameter Size in inches Fitting Equivalent LTK

2.0-2.5 #5 XS
3.0-4.0 # 7-9 S
4.5-5.5 #10-13 M
6.0-8.5 #15-18 L

If you are not sure send a Project Picture for Analysis. We want to get it right!

For Engineers

Thermal Efficiency of Insert

ASTM C518 750 F

K .3

Operating Temperature Limits

  • Spunbond PP/IIdpe up to 2000 F (930 C)
  • Insert 00 to 4500F (-180C to 2320C)
  • Flame spread 25 or less
  • Fire/Smoke Performance ASTM E84
  • Flame Spread Index <25
  • Smoke Development Index <50

Physical Properties of spunbond PP/IIdpe

  • Total basis weight ASTM D3 776-90 2oz/yd2
  • Thickness ASTM D177-75 1.5 mils
  • Water Vapor Transmission ASTM E96 0.01 perm 37.80C/1000F-RH/100%
  • Tearing Strength Trapezoid Cmd/cd ASTM D1117-80 7/5lbs

*Patent pending
